How Do You Fix It?
The Solution is simple… if you have emme. The key to room-by-room
zone control is knowing the temperature in each room, that's the purpose of emme's
wireless Smart Controllers. These small sensors are placed in each room and provide
the current temperature to the Master Control Unit. Being wireless, emme's Smart
Controllers do not require any remodeling or wiring to install and their two AAA
batteries will transmit the temperature for several years. For added convenience,
you can make temporary temperature adjustments or place the room in energy conserving
SAVER mode right from the Smart Controller.
Once installed, the sensors and master control unit manage a series of pneumatic
dampers that allow the system to isolate and direct airflow to each room of your
house. The dampers are tough, designed for years of trouble-free service, and flexible,

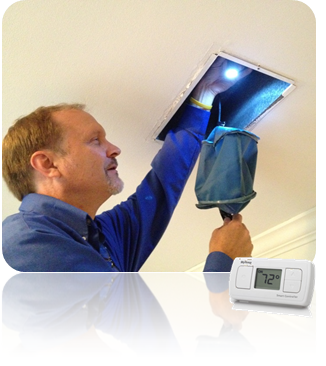

to provide a tight seal. Our patented installation technique allows us to insert
dampers into your ductwork without cutting into walls or floors: the process is
quick and mess-free. The result: every room in your house is comfortable.
|
|
How it Works
emme room-by-room zone control uses your (1) existing heating and cooling equipment
and (2) ductwork. When the emme system is installed in your home, a wireless
(3) Smart Controller™ is placed in each room. It periodically measures and
transmits the room's temperature. A (4) wireless receiver collects this information
and passes it along to the (5) master unit. Using temperature information
from each room as well as temperature data from an (6) outside monitor, sophisticated
software determines which rooms need conditioning. Using air pressure and vacuum
supplied from an external (7) air pump and power supply individual rooms
are included or removed from the conditioning cycle by opening and closing (8) dampers
located in the ducts. The master unit then activates the heating, cooling, and circulation
equipment in your home to achieve your settings. Using information from the (9) HVAC
sensor, the master unit can determine how many dampers can be simultaneously
closed without affecting your equipment. You can adjust the temperature for single

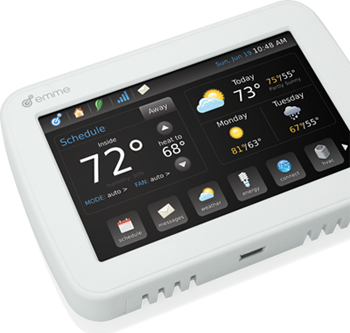

rooms, groups of rooms, or the entire home using the touch-screen on the (10) main
display. Once set up, the emme system automatically maintains your temperature
settings throughout your house.
